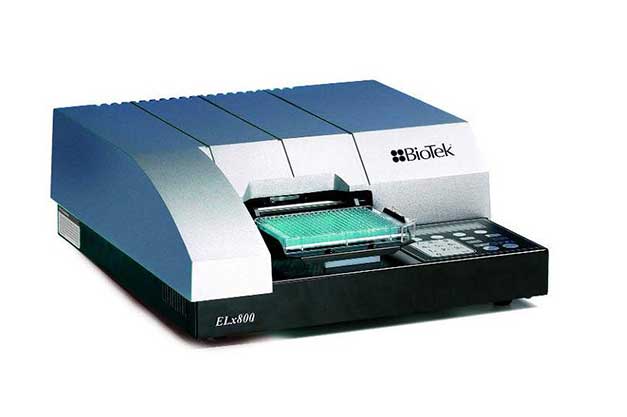

ELx800 Absorbance Reader

Elx800

مشخصات دستگاه

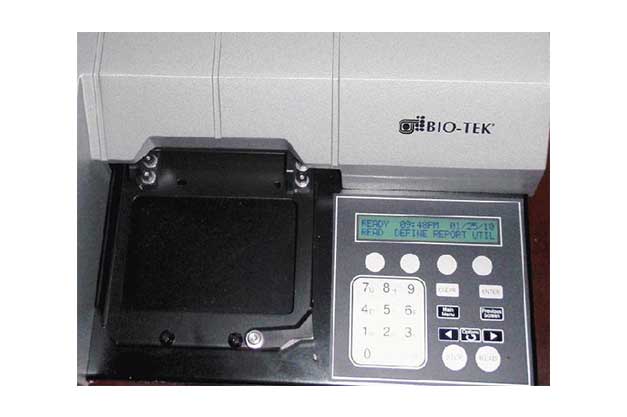

دستگاه میکروپلیت ریدر ELx800، با استفاده از روش جذب نوری اقدام به خواندن نمونه ها می کند. این دستگاه قابلیت خواندن با استفاده از 5 فیلتر مختلف را دارد که به صورت پیش فرض 4 عدد از این فیلتر ها پر می باشد و بسته به کاربرد دستگاه و خواسته کارشناس دستکاه می توان اندازه فیلتر ها را انتخاب و سپس دستگاه را سفارش داد. معمولا 4 عدد از فیلتر های دستگاه به شرح ذیل می باشند: 405nm,450nm,490nm,630nm . این دستگاه برای تجزیه و تحلیل داده ها از قبیل رسم منحنی غلظت و یا فرمول نویسی هم می تواند به کامپیوتر متصل شود و با نرم افزار کنترل شود و هم می تواند به صورت جدا و با استفاده از صفحه کلید نصب شده رو دستگاه برنامه نویسی شده و با استفاده از پرینتر سوزنی داده ها را نمایش و چاپ کند.

The ELx800:tm: is designed for applications within the clinical, biotechnology research and pharmaceutical laboratory. Its compact footprint and proven robust design makes it an ideal solution for many microplate based biological assays. The ELx800 can be controlled by Gen5 software, expanding the reader’s capabilities to include kinetics and well area scanning measurements. Gen5 offers unsurpassed data reduction capability as well as customizable data output options. When standalone use is preferred, the ELx800 on-board software is extensive for a variety of qualitative and quantitative applications.

Multiple Plate Formats
- 6-, 12-, 24-, 48-, 96- and 384-well capability to meet a variety of assay needs
- Specialized applications in 60-, 72-, and 96-well Terasaki formats

Superior Hardware Design
- Ensures optimal performance
- Provides reliable, long term use

On-Board Diagnostic Testing
- System Test checks the entire optics path

Compact Footprint
- Conserves valuable benchspace

Gen5 Data Analysis Software (optional)
- Several editions of Gen5 are available to meet the assay and laboratory needs
- Gen5CL is available for users who currently run assays from a custom assay database
- Gen5 Secure (and Gen5CL) are both compliant to 21CFR Part 11

Part #	ELX800	ELX800NB	ELX800UV
6- to 96-well	•		•
6- to 384-well		•
400-750 nm	•	•
340-750 nm			•
Software	Option	Option	Option

General
Detection modes	Absorbance
Read methods	Endpoint. Kinetic, well area scanning (under computer control)
Microplate types	6- to 384-well plates
Software	Gen5 Reader Control Software Gen5 Data Analysis Software (optional)
Absorbance
Light source	Tungsten halogen
Detector	photodiode
Wavelength selection	filters
Wavelength range	400 to 750 nm 340 to 750 nm (UV option)
Dynamic range	0 to 3.0 OD
Resolution	0.001 OD
Pathlength correction	no
Filter wheel capacity	5 positions
Filters supplied	4 filters (5 with UV option)
OD accuracy	<1% at 2.0 OD
OD linearity	<1% at 2.0 OD <3% at 3.0 OD
OD repeatability	<0.5% at 2.0 OD
Reading speed (kinetic)	96 wells: 30 seconds
Physical Characteristics
Power	100 - 240 Volts AC. 50/60 Hz
Dimensions	15"W x 16.5"D x 7"H (38.1 x 41.9 x 17.8 cm)
Weight	18.5 lbs (8 kg)
Regulatory
Regulatory	For In Vitro Diagnostic use. CE and TUV marked, RoHS Compliant.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Data Analysis Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some microplate readers come with a specific edition of Gen5, please check the microplate reader specifications.

Standard (Included)

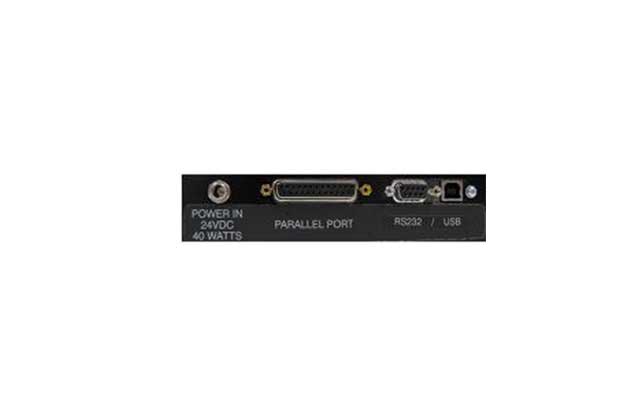

Cables
71072	Parallel Printer Cable (25-pin male to 36-pin male)
75034	Serial Cable, Modem (9-pin female to 9-pin male)
75108	USB Cable (male A to male B)
Operators Manual
MANUAL	Operator's manuals can be obtained via the Customer Resource Center
Test Plates & Reagents
7260551	340 nm Absorbance Test Plate

Optional
Cables
75104	USB to Serial Adapter
75135	Parallel to USB Adapter
Filter Accessories
2872086	Plug (Dummy filter) for ELx800
7332000	Empty Filter Wheel for ELx800

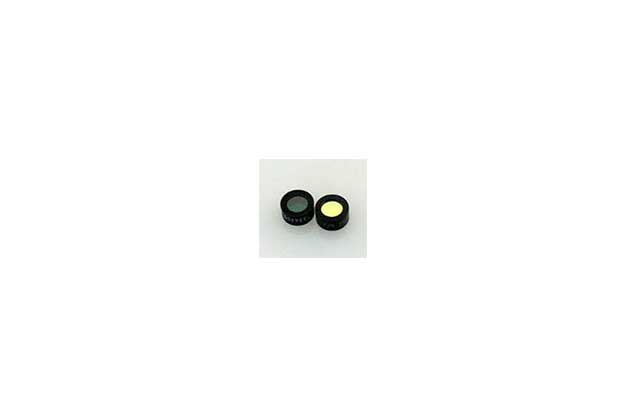

Filters
7334340	340nm Filter for ELx800
7334405	405nm Filter for ELx800
7334415	415nm Filter for ELx800
7334450	450nm Filter for ELx800
7334490	490nm Filter for ELx800
7334515	515nm Filter for ELx800
7334540	540nm Filter for ELx800
7334550	550nm Filter for ELx800
7334562	562nm Filter for ELx800
7334570	570nm Filter for ELx800
7334590	590nm Filter for ELx800
7334595	595nm Filter for ELx800
7334600	600nm Filter for ELx800
7334620	620nm Filter for ELx800

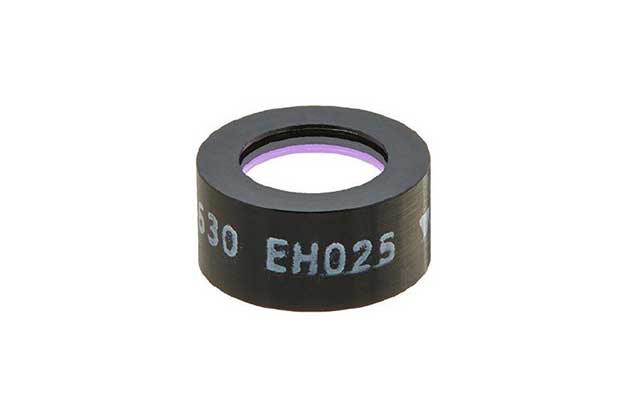

7334630	630nm Filter for ELx800
7334650	650nm Filter for ELx800
7334660	660nm Filter for ELx800
7334690	690nm Filter for ELx800
7334750	750nm Filter for ELx800

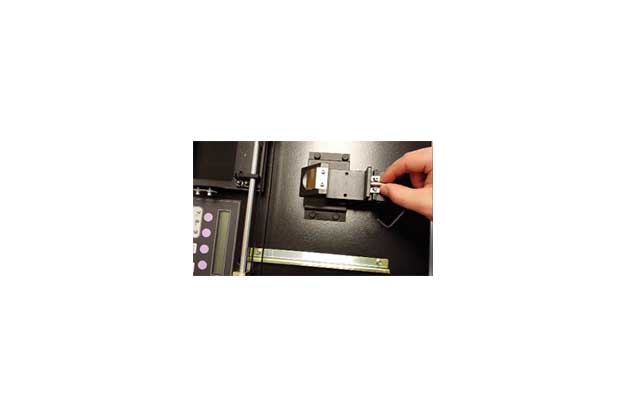

Lamps
7330513	Lamp Replacement Kit for ELx800
7330516	Lamp Replacement Kit for ELx800NB and ELx800UV
Product Qualification Packages
7330538	ELx800 Qualification Package
Test Plates & Reagents
7120779	BioTek QC Check Solution #1 - Yellow (25 mL)
7120782	BioTek QC Check Solution #1 - Yellow (125 mL)
7260522E	Absorbance Test Plate
