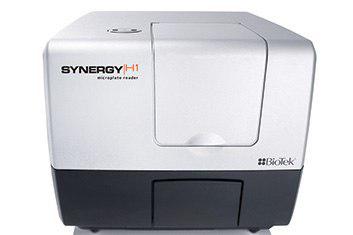

Synergy H1 Multi-Mode Reader

مشخصات دستگاه

Patented Hybrid OpticsSynergy™ H1 is a flexible monochromator-based multi-mode microplate reader that can be turned into a high-performance patented Hybrid system with the addition of a filter-based optical module. The monochromator optics uses a third generation quadruple grating design that allows working at any excitation or emission wavelength with a 1 nm step. This system supports top and bottom fluorescence intensity, UV-visible absorbance and high performance luminescence detection. It is the ideal system for all the standard microplate applications found in life science research laboratories.

The filter module is a completely independent add-on that includes its own light source, and a high performance dichroic-based wavelength selection system. With its very high optical efficiency, this module supports advanced detection modes such as Fluorescence Polarization, Time-Resolved Fluorescence & TR-FRET and filtered luminescence (e.g. BRET). A dual reagent injection system is available to automate inject/read assays such as ion channels assays or flash luminescence assays (e.g. luciferase or ATP assays).

To create the ideal physiological environment for live-cell assay, incubation to 45 °C and available gas controller monitors CO2 and O2 levels in Synergy H1.

US Federal Government customers: This product is available on GSA contract. Contact BioTek Customer Care with questions or submit a Quote Request Form to receive pricing and information on specific models (please note GSA Contract in the Comments field).

Hybrid Technology™ protected under U.S. Patent 8,218,141.

HTRF® and the HTRF logo are registered trademarks of Cisbio.

Take3 Trio Compatible

  • Patented Hybrid Technology™ combines flexible monochromator detection with high performance dichroic-based detection.

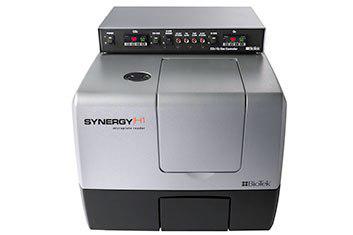

  • Compatible with the Gas Controller for control and monitoring of CO2 and O2.
  • Compatible with Take3™ Micro-Volume Plate: samples down to 2 µL volume can be measured. Especially useful when working with precious samples, for fast and accurate DNA/RNA quantification at 260 nm

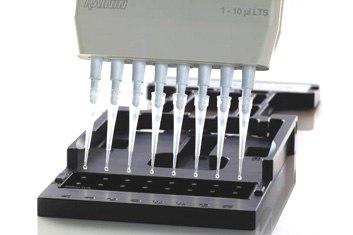

Take3 Micro-Volume Plate
  • Quadruple grating monochromator for maximum flexibility and ease of use.
  • Dichroic-based filter optics, for best performance and advanced detection technologies such as fluorescence polarization and time resolved fluorescence.
  • Comes with Gen5 software: reader control, advanced data analysis and flexible Excel export in one software package.
Part #
H1M
H1MD
H1F
H1FD
H1MF
H1MFD
Monochromator fluorescence
•
•


•
•
Monochromator absorbance
•
•


•
•
Full-light luminescence
•
•
•
•
•
•
Filter/dichroic fluorescence

•
•
•
•
Fluorescence polarization
•
•
•
•
Time resolved fluorescence
• *
• *
•
•
•
•
Filtered luminescence
•
•
•
•
Dual reagent dispenser
•

•

•
Temperature control to 45°C
•
•
•
•
•
•
Gen5 data analysis software
•
•
•
•
•
•
* Secondary mode

Gas Controller Compatible Configurations** H1MG H1MDG H1FG H1FDG H1FMG H1MFDG
** These configurations have the same features as the non- Gas Controller Compatible configurations in the chart above. Gas Controller sold separately.





General
Detection modes UV-Vis absorbance
Fluorescence intensity
Luminescence
Fluorescence polarization
Time-resolved fluorescence
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types 6- to 384-well plates
Other labware supported Petri and cell culture dishes
Take3 Micro-Volume Plates
Temperature control 4-Zone™ incubation to 45 °C with Condensation Control™
+0.2 °C at 37 °C
Shaking Linear, orbital, double orbital
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
BioSpa 8 Automated Incubator compatible
CO2 and O2 control (option) Range: 0 - 20% (CO2); 1 - 19% (O2)
Control Resolution: +0.1% (CO2 and O2)
Stability: +0.2% at 5% CO2; +0.2% at 1% O2
Models for both CO2 and O2 or CO2 only are available
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 230 - 999 nm, 1 nm increments
Monochromator bandwidth 4 nm (230-285 nm), 8 nm (>285 nm)
Dynamic range 0 - 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy ±2 nm
Monochromator wavelength repeatability ±0.2 nm
OD accuracy <1% at 2.0 OD
<3% at 3.0 OD
OD linearity <1% from 0 to 3.0 OD
OD repeatability <0.5% at 2.0 OD
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Fluorescence Intensity
Light source Xenon flash
Detector PMT for monochromator system
PMT for filter system
Wavelength selection Quad monochromators (top/bottom)
Filters (top)
Wavelength range Monochromators: 250 - 700 nm (850 nm option)
Filters: 200 - 700 nm (850 nm option)
Monochromator bandwidth Fixed, 16 nm
Dynamic range 7 decades
Sensitivity Filters:
Fluorescein 0.25 pM (0.025 fmol/well, 384-well plate)

Quad Monochromator:
Fluorescein 2.5 pM (0.25 fmol/well, 384-well plate) - top
Fluorescein 4 pM (0.4 fmol/well, 384-well plate) - bottom
Reading speed (kinetic) 96 wells: 11 seconds
384 wells: 22 seconds
Luminescence
Wavelength range 300 - 700 nm
Dynamic range >6 decades
Sensitivity Monos: 20 amol ATP (flash)
Filters: 10 amol ATP (flash), 100 amol (glow)
Fluorescence Polarization
Light source Xenon flash
Detector PMT
Wavelength selection Filters
Wavelength range 280 - 700 nm (850 nm option)
Sensitivity 1.2 mP standard deviation at 1 nm fluorescein
Time-Resolved Fluorescence
Light source Xenon flash
Detector PMT
Wavelength selection Quad monochromators (secondary mode)
Filters (top)
Wavelength range Filters: 200 - 700 nm (850 nm option)
Sensitivity Filters: Europium 40 fM (4 amol/well, 384-well plate)
Monos: Europium 1200 fM (120 amol/well, 384-well plate)
Reagent Dispensers
Supported detection modes All modes
Number 2 syringe pumps
Supported labware 6- to 384-well microplates, Petri dishes
Dead volume 1.1 mL, 100 µL with back flush
Dispense volume 5 - 1000 µL in 1 µL increment
Dispense accuracy ±1 µL or 2%
Dispense precision <2% at 50-200 µL
Physical Characteristics
Power 130 Watts max.
Dimensions 15.4"W 18.6"D 12.9"H
(39.1 x 47.2 x 32.8 cm)
Weight 50 lbs (22.5 kg)
Regulatory
Regulatory CE and TUV marked. RoHS Compliant. Models for In Vitro Diagnostic use are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Data Analysis Software

Gen5 Data Analysis Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some microplate readers come with a specific edition of Gen5, please check the microplate reader specifications.
