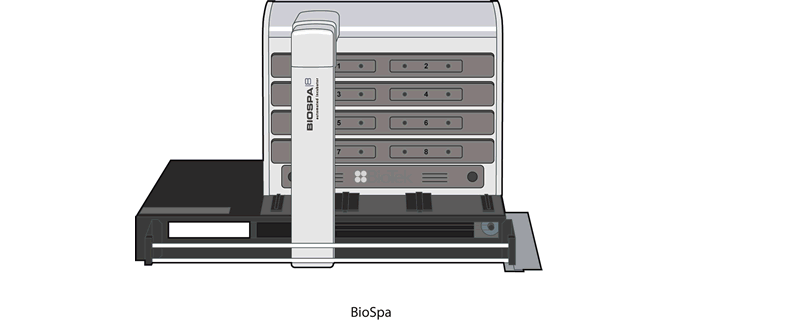

BioSpa 8 Automated Incubator

مشخصات دستگاه

BioSpa 8 Automated Incubator links BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Real time control and continuous temperature, CO₂/O₂ and humidity level monitoring, along with lid handling ensure an ideal environment for cell cultures during all experiment stages, with minimal manual intervention. BioSpa's software, which features customizable text or email notifications and alerts, also relieves the need for onsite monitoring. The software's session timelines and environmental reports allow quick scrutiny of the process and system status. BioSpa 8 automates assay workflows by repeated manipulation and storage of microplates containing live cells or temperature sensitive reagents. Link one washer or dispenser, one plate reader or imager, or one of each for start-to-finish workflow automation. BioSpa 8 is ideal for efficient automation of short or long-term cell based and other temperature, gas and humidity sensitive processes.

Full unattended workflow automation integrating sample prep with detection/imaging for up to 8 plates
Real time temperature and CO₂/O₂ control and monitoring, with humidity monitoring alleviates common problems associated with assay failure
Continuous recording of environment conditions and customized notifications allow detailed assay monitoring and analysis
Compact system integration fits in biosafety cabinet, providing the ultimate cell assay protection
Uncomplicated software and simple integration for rapid implementation with a short learning curve

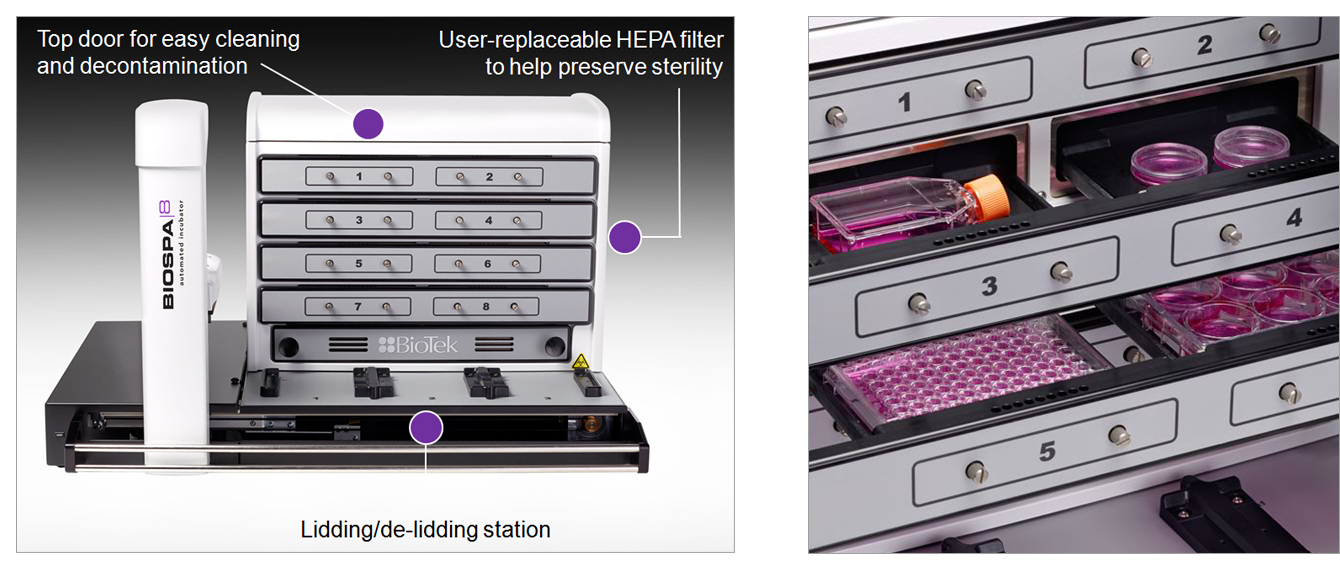

Easy access for cleaning, plus HEPA filtration and lid handling station
Fully automated processing for up to 2 weeks for long term live cell assays
Handles low and high density microplates, cell culture and Petri dishes and T25 flasks

- Handles low and high density microplates, cell culture and Petri dishes and T25

BIOSPA
Automated incubator with 8-plate capacity, incubation to 45 °C, with control and monitoring. Includes BioSpa software and one alignment kit.

BIOSPAG
Automated incubator with 8-plate capacity, incubation to 45 °C and CO₂/O₂ control and monitoring, water pan and humidity monitoring. Includes BioSpa software and one alignment kit.

BioSpa 8 can integrate to one washer or dispenser, one imager or reader, or to two instruments for complete, unattended workflow automation.

General
Microplate types	6- to 1536-well standard height microplates, with or without lids. Plate height range: 7.6 mm to 25.4 mm
Other labware supported	Cell culture dishes (60 mm and 35 mm), T25 flasks
Lidded plate handling	Robotic arm moves plate to and from BioSpa 8 and connected instrument; handles de-lidding and re-lidding plates.
Microplate capacity	Up to 8 microplates (or other labware)
Air filter	User-replaceable HEPA filter
Compatible instruments	Cytation 5, Cytation 3, Synergy Neo2, Synergy H1, Epoch 2, EL406, 405 TS, 405 LS, MultiFlo FX, MultiFlo
Interfacing capacity	1 or 2 devices: Reader/imager only, washer/dispenser only, or both
Software	BioSpa Automated Incubator Software: Provides programming interface for BioTek detection and liquid handling devices Allows user notification (text or email) of events and/or errors in the system Provides control, monitoring and logging of: CO₂/O₂ incubator temperature Provides humidity level monitoring and logging Allows long-term uninterrupted runs up to 2 weeks
CO₂ and O₂ control (option)	Range: 0 - 20% (CO₂); 1 - 19% (O₂) Control Resolution: +0.1% (CO₂ and O₂) Stability: +0.2% at 5% CO₂; +0.2% at 1% O₂
Temperature Control	Range: to 45 °C Control resolution: 0.1 °C Uniformity + 0.5 °C at 37 °C
Humidity (option)	rH: 80 to 95% (lidded plates and 5% CO₂) Source: Removable water pan Water level sensor: Low water level alert
Recommended Computer System Requirements	Intel Pentium P4 processor or compatible/ 1.33 GHz Windows 7, Windows 8.1 or Windows 10 Professional Editions 2 GB of RAM Designed for XGA Resolution 1080 x 860 10 GB of available Hard Drive space Keyboard and mouse; USB ports Microsoft Internet Explorer v 9.0 or higher (for online Help) LHC™ v 2.19 or higher for washer or dispenser integration Gen5 2.09 or higher for reader or imager integration
Physical Characteristics
Dimensions	27.2" W x 20.1" D x 18.9" H 69 cm W X 51 cm D x 48 cm H
Regulatory
Regulatory	CE and TUV marked, RoHS compliant.

Specifications are subject to change. Performance values represent the average observed factory test values.

Optional
BioSpa 8 Integration Kits
1410008	Alignment kit for Synergy Neo2 and Cytation 3/5
1410009	Alignment kit for Epoch 2
1410010	Alignment kit for Synergy H1
1410011	Alignment kit and instrument base for all liquid handlers (1)
1410012	Cover accessory for reader- and imager-only integration
Bottles & Tubing
02124	Replacement bottle for condensation purge port
Miscellaneous
02126	Replacement HEPA filter
48146	Filter for vacuum line or air inlet
1410013	8 replacement carriers (to replace lost or broken carriers)
