NucleoCounter® NC-200™

مشخصات دستگاه

این دستگاه جهت شمارش سلول ها به کار می رود و قادر است در یک مرحله تعداد سلول های زنده و مرده و هم چنین درصد viability را حساب کند. هم چنین این دستگاه با استفاده از نرم افزار می تواند کارهای پردازش و هم چنین گزارش گیری از نمونه ها را انجام دهد.

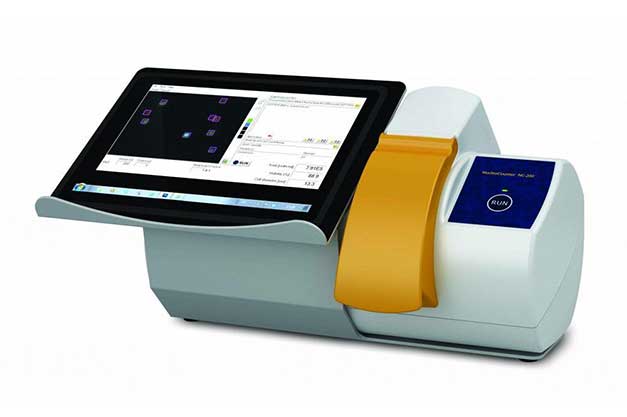

NucleoCounter® NC-200™ - Automated Cell Counter
The NucleoCounter® NC-200™ is a high precision cell counter utilizing state-of-the-art image cytometry. The patented Via1-Cassette™ used for automated staining and sample handling is volume calibrated to ensure high precision and reproducibility. With user adaptable protocols and specialized assays for aggregated cells and cells on microcarriers, the NucleoCounter® NC-200™ provides an all-in-one solution for cell counting and cell viability determinations.

NucleoCounter® NC-200™ - Automated Cell Counter

The NucleoCounter® NC-200™ is a high precision cell counter utilizing state-of-the-art image cytometry. The patented Via1-Cassette™ used for automated staining and sample handling is volume calibrated to ensure high precision and reproducibility. With user adaptable protocols and specialized assays for aggregated cells and cells on microcarriers, the NucleoCounter® NC-200™ provides an all-in-one solution for cell counting and cell viability determinations.

Technical Specifications
Loading volume	60 μl is loaded into the Via1-Cassette™
Measurement volume	1.4 μl in the measurement chamber of the Via1-Cassette™
Analysis time	50 seconds (one step), 120 seconds (two step)
Measurement range	5 x 10³ to 1 x 10⁷ cells/ml.
Optimal range	5 x 10⁴ to 5 x 10⁶ cells/ml.
Size	38 x 26 x 22 cm (W x H x D)
Weight	3 kg / 6.7 lb
Software	NucleoView™ NC-200 software

NucleoCounter® NC-200™ Assays
No.	Assay Name	Download
994-0220	Mammalian Cells - Viability and Cell Count	Open PDF
994-0202	Counting Aggregated Mammalian Cells	Open PDF
994-0203	Viability and Cell Count - Aggregated Mammalian Cells	Open PDF
994-0204	Zero Count Qualification Protocol for the NucleoCounter® NC-200™ system	Open PDF
994-0207	Whole Blood Assay - Viability and Cell Count	Open PDF
994-0214	Viability and Cell Count with Reagent A100 and B	Open PDF
994-0215	Counting Aggregated Cells with Reagent A100 and B	Open PDF

Related articles
2-Step Protocol for Counting Heavily Aggregated Cells with NC-200™
Comparison of Hemocytometers and Automated Cell Counters
VitaBright 43™ and 48™ Stains – Cytometric Profiling of Apoptosis and other Pathological Processes
Avoid Human Interference in Cell Counting - The Innovative Via1-Cassette™

NucleoCounter® NC-200™ Documentation
No.	Document Name	Download
994-0031	LED Life Time Considerations for the NucleoCounter® NC-200™	Open PDF
994-0208	White Paper 21 CFR Part 11 for NC-200™ Software	Open PDF
994-0216	NucleoCounter® NC-200™ - Variation and Statistics	Open PDF
994-0218	Performance of NucleoCounter® NC-200™	Open PDF
991-0203	NucleoCounter® NC-200™ Instrument User's Guide	Open PDF
991-0204	NC-200 NucleoView™ Software User's Guide	Open PDF
991-0205	NucleoCounter® NC-200™ Quick Guide	Open PDF
/	Certificate of Conformity	Open PDF

NucleoCounter® NC-200™ Brochures
No.	Brochure Name	Download
990-0201	NucleoCounter® NC-200™ - Brochure	Open PDF
990-0202	NucleoCounter® NC-200™ - Brochure, US letter format	Open PDF

Consumables	Accessories
Via1-Cassette™, 1 Box (100 pcs.)	Finnpipette 20-200 μl
Reagent A100, 500 ml	Finntip 250, 96 pcs.
Reagent B, 500 ml	Custom Printer Q3, White
Solution 10 – Lysis Buffer, 100 ml	Laptop Stand for NC-200™
Solution 17 – Blood Lysis Buffer 25 ml
NC-200™ IQ/OQ Kit
PQ Test Kit for NC-200™
