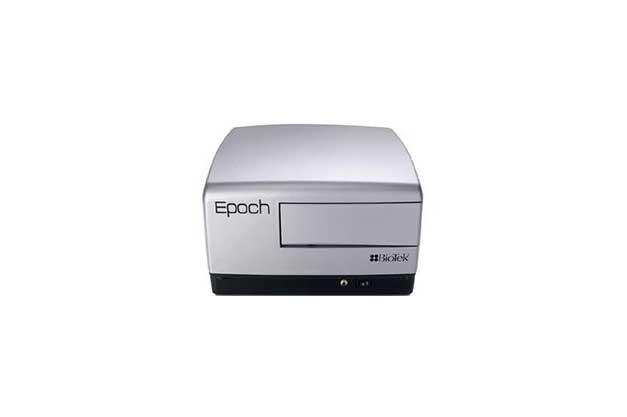

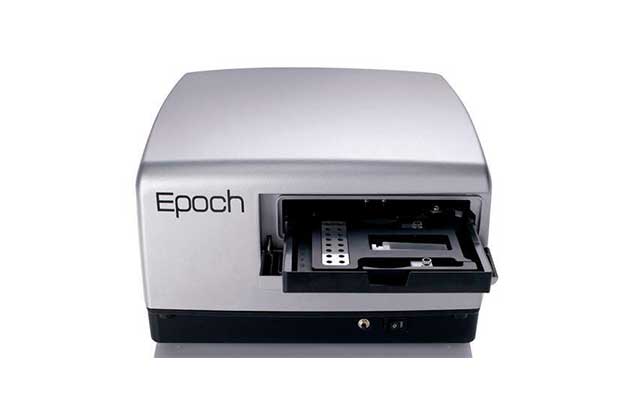

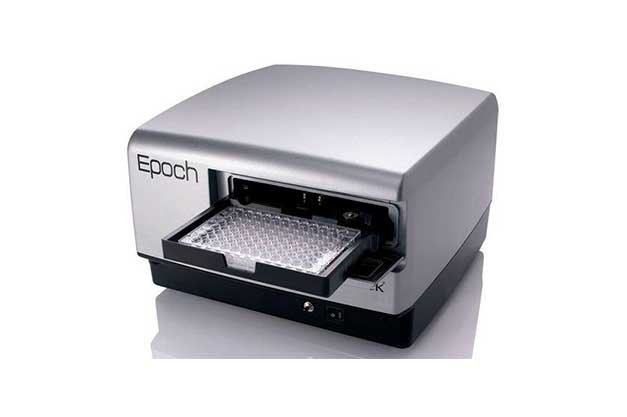

Epoch Microplate Spectrophotometer

مشخصات دستگاه

این دستگاه آشکارسازی را با استفاده از Absorbance انجام می دهد. هم چنین این دستگاه قادر است که طول موج بین 200 تا 999 نانومتر را اندازه کند. دستگاه با اتصال به کامپیوتر و با کمک نرم افزار Gen5 کنترل می شود. هم چنین بنا به مدل آن می تواند کار انکوباسیون را نیز انجام دهد. در صورتی که Plate Take3 نیز خریداری شود این دستگاه می تواند کار نانودراپ را نیز انجام دهدو با استفاده از کووت و بیوسل و یا میکرو اسپات آزمایش مورد نظر را انجام داد.
Epoch™ has a monochromator-base UV-Vis wavelength selection, offering expanded options for the life science laboratory without using interference filters, building in inherent cost savings. With its 200 nm to 999 nm wavelength range and 6- to 384- microplate reading capability, controlled with the Gen5 Data Analysis software interface, Epoch fills a void in today’s laboratory through smart design and superior features. This robust, low maintenance microplate spectrophotometer ensures even greater value over time. BioStack and 3rd party automation capability is available with the optional Epoch R model.
  • 200 nm to 999 nm in 1 nm increments
  • 6- to 384- well plate reading capability
  • Gen5™ Microplate Data Analysis Software included
  • Automated pathlength correction for direct quantification
  • Integrated detector & electronics for low-noise measurements
  • Robust housing design for longevity even under heavy usage
  • Take3™ Micro-Volume Plate compatibility for low volume nucleic acid quantification, BioCell or cuvette measurements
  • Wavelength scanning, end point, kinetic and well area scanning

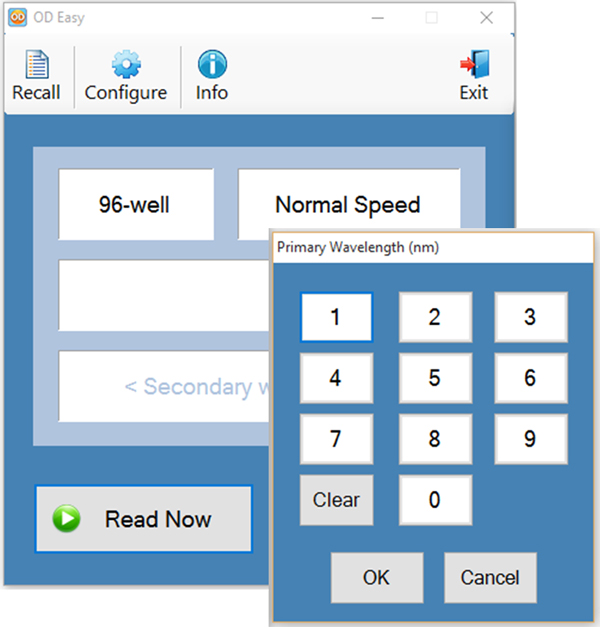

New OD Easy app for quick and easy  end-point measurements!
  • Start reading in as few as 1 click
  • Recall recently used settings
  • View/print reports, export to .txt or Excel
  • Generates and saves Gen5 .xpt file for advanced analysis
OD Easy
OD Easy offers a simple interface for quick absorbance measurements.
Epoch
Microplate Spectrophotomete


EPOCHR
EpochR - Microplate Spectrophotometer, BioStack and 3rd party compatible.
General
Detection modes Absorbance
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types 6- to 384-well plates
Other labware supported Take 3 Micro-Volume Plates
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack™ and 3rd party automation compatible ('R' configuration)
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 200 to 999 nm, in 1 nm increments
Monochromator bandwidth 5 nm
Dynamic range 0 - 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy + 2 nm
Monochromator wavelength repeatability + 0.2 nm
OD accuracy 0 to 2 OD: +1% +0.010 OD
2 to 2.5 OD: +3% +0.010 OD
OD linearity 0 to 2 OD: +% +0.010 OD
2 to 2.5 OD: +3% +0.010 OD
OD repeatability 0 to 2 OD: +1% +0.005 OD
2 to 2.5 OD: +3% +0.005 OD
Reading speed (kinetic) 96 wells: 15 seconds
384 wells: 31 seconds
Physical Characteristics
Power 100 - 240 Volts AC. 50/60 Hz.
Dimensions 12" W x 12.5" D x 7.7" H
(30.5 cm x 31.8 cm x 19.6 cm)
Weight <15 lbs (6.8 kg)
Regulatory
Regulatory CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Microplate Reader and Imager Software

Gen5 Microplate Reader and Imager Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.


Optional

BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Standard (Included)

Operators Manual

MANUAL Operator's manuals can be obtained via the Customer Resource Center

Optional

Adapters and Labware Holders

7200519 PC Shelf accessory has picture
7302030 Cuvette Adapter accessory has picture

BioStack Integration Kits

7310043 BioStack Integration Kit for Epoch R

Miscellaneous

7210515 3-Instrument Rack – for third party robotic system integration accessory has picture
7270512 BioCell Adapter Plate Assembly accessory has picture
7272051 BioCell 1 cm Quartz Vessel accessory has picture

Product Qualification Packages

7200515 Epoch Qualification Package

Software Options

GEN5SECURE Gen5 Secure accessory has picture
GEN5IVD Gen5 IVD accessory has picture
Gen5 Gen5 Data Analysis Software accessory has picture
GENRC Gen5 Reader Control (RC) accessory has picture

Take3 Micro-Volume Plate

TAKE3 Take3 Micro-Volume Plate accessory has picture
Take3TRIO Take3 Trio Micro-Volume Plate accessory has picture

Test Plates & Reagents

7260522E Absorbance Test Plate accessory has picture
7260551 340 nm Absorbance Test Plate accessory has picture
