Epoch 2 Microplate Spectrophotometer

مشخصات دستگاه

محدوده طول موج nm 999 – 200 با قابلیت افزایش و یا کاهش nm 1 و دقتnm 2/0±
- انتخاب طول موج : Monochromator
- دقت طول موج : + 2 nm
- روش های خوانش End point, Kinetic, Spectral Scanning and well area scanning
- قابلیت خوانش پلیت های 6 خانه تا 384خانه
- قابلیت اندازه گیری حجم های مختلف با استفاده از پلیت Take3 و بهره وری هرچه بیشتر از نمونه های با ارزش، به طور مثال 2µl نمونه DNA، RNA و پروتئین (در صورت سفارش این آیتم می توان از دستگاه بعنوان نانو دراپ استفاده کرد .)
- دارای سیستم کنترل دما(Incubation) در محدوده دمایی 4 درجه بالاتر از دمای محیط تا C ˚65

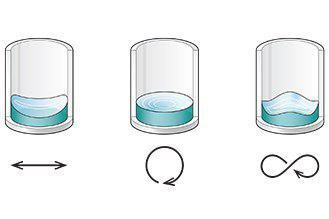

- دارای سیستم تکانش(Shaking) به روش های Orbital, Double Orbital و Linear
- منبع نوری Flash Xenon Lamp
- خوانش (Optical Density) OD در محدوده 2-0 با دقت010 /0
- سرعت خوانش : 8 ثانیه جهت پلیت 96 خانه و 13 ثانیه جهت پلیت 384 خانه
- دارای پورت خروجی RS232 , USB
- دارای نرم افزار G5TM مدل 2.0
- در صورت تهیه پلیت Take3 می توان بعنوان نانودراپ استفاده کرد.

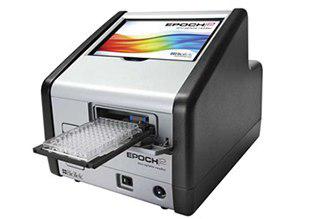

Epoch 2 microplate spectrophotometer combines modern touchscreen technology with excellent performance for UV-Vis measurements in 6- to 384-well microplates, cuvettes and in micro-volume samples with the available Take3 plate. No need to worry about limited on-board software, since Epoch 2 comes with full function Gen5 software, ready to read and analyze data at the touch of the screen! For maximum versatility, Epoch 2 reads from 200 nm to 999 nm in 1 nm increments for single, dual and multi-wavelength measurements in endpoint and kinetic read methods. Spectral scanning and well area scanning add to the system's wide-ranging applications. For cell-based and other temperature sensitive assays, Epoch 2's 4-Zone™ incubation extends to 65 °C and offers the unique Condensation Control™ to prevent condensation on plate lids. A variety of data output options are available, including WiFi, Bluetooth and a USB flash drive, making Epoch 2 a fully contained microplate spectrophotometer workstation.
  • UV-Vis wavelength selection in 6- to 384-well plates, cuvettes and 2 µL micro-volume samples

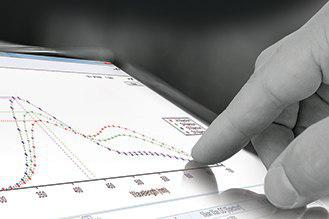

  • Large color touchscreen with available WiFi, Bluetooth and flash drive connectivity
  • Full Gen5 Data Analysis Software on-board, or via Gen5 on an external pc

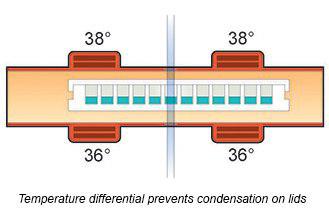

  • Advanced incubator design to 65 °C with Condensation Control
  • Compatible with BioStack and 3rd party automation

New OD Easy app for quick and easy end-point measurements!
  • Start reading in as few as 1 click
  • Recall recently used settings
  • Touchscreen friendly
  • View/print reports, export to .txt or Excel
  • Generates and saves Gen5 .xpt file for advanced analysis
  • The OD Easy app is available on the Customer Resource Center for Epoch and Epoch 2 customers.




OD Easy

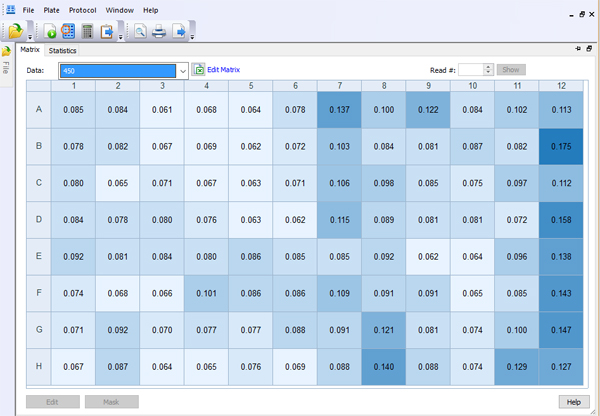

OD Easy has a simple, touchscreen-friendly interface for quick absorbance measurements. Data is displayed, ready for printing or exporting:

Part #
EPOCH2
EPOCH2T
EPOCH2C
EPOCH2TC
Incubation
 •
Shaking
 •
Gen5 Software*
Touchscreen

 •

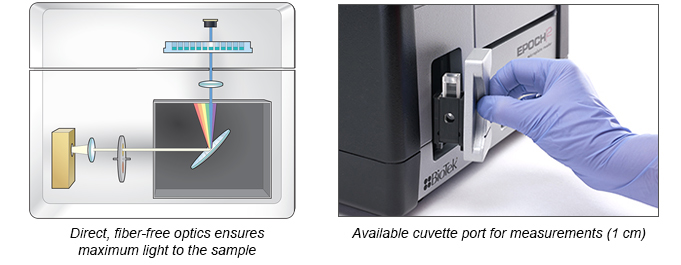

Cuvette port


General
Detection modes Absorbance
Read methods Endpoint, kinetic, spectral scanning, well area scanning
Microplate types 6- to 384-well plates
Other labware supported Take 3 Micro-Volume Plates
Temperature control 4-Zone™ incubation to 65 °C with Condensation Control
+ 0.2 °C at 37 °C
Shaking Linear, orbital, double orbital
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
BioSpa 8 Automated Incubator compatible
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 200 - 999 nm, selectable in 1 nm increments
Monochromator bandwidth 2.9 nm
Dynamic range 0 - 4.0 OD
Resolution 0.0001 OD
Pathlength correction yes
Monochromator wavelength accuracy + 2 nm
Monochromator wavelength repeatability + 0.2 nm
OD accuracy 0 to 2.0 OD + 1% + 0.010
2.0 to 2.5 OD + 3% + 0.010
OD linearity 0 to 2.0 OD + 1% + 0.010
2.0 to 2.5 OD + 3% + 0.010
OD repeatability 0 to 2.0 OD + 1% + 0.005
2.0 to 2.5 OD + 3% + 0.005
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells sweep read: 8 seconds
384 wells sweep read: 14 seconds
Physical Characteristics
Power 100 - 240 Volts AC. 50/60 Hz
Dimensions With touchscreen: 15.5" D x 12.5" W x 13" H (39.3 x 32 x 33 cm)
Without touchscreen: 15.5" D x 12.5" W x 8" H (39.3 x 32 x 20.3 cm)
Weight With touchscreen: 25 lbs (11.3 kg)
Without touchscreen: 20 lbs (9.1 kg)
Regulatory
Regulatory CE and TUV marked, RoHS compliant. Models for In Vitro Diagnostic use are available.

Standard (Included)

Gen5 Microplate Reader and Imager Software

Gen5 Microplate Reader and Imager Software

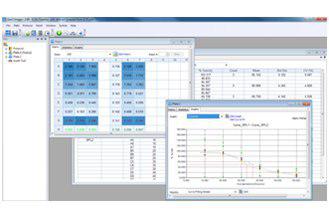

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.


Optional

BioSpa 8 Automated Incubator

BioSpa 8 Automated Incubator

BioSpa 8 is an automated incubator linking BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Temperature, CO2/O2 and humidity levels are controlled and monitored through the BioSpa software to maintain an ideal environment for cell cultures during all experimental stages.


BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Optional

BioSpa 8 Integration Kits

1410009 Alignment kit for Epoch 2

BioStack Integration Kits

7310054 BioStack Integration Kit for Epoch 2

Miscellaneous

7210515 3-Instrument Rack – for third party robotic system integration accessory has picture

Product Qualification Packages

1330520 Epoch 2 Product Qualification Package - IQ/OQ/PQ

Software Options

GEN5SECURE Gen5 Secure accessory has picture
GEN5IVD Gen5 IVD accessory has picture
Gen5 Gen5 Data Analysis Software accessory has picture
GENRC Gen5 Reader Control (RC) accessory has picture

Take3 Micro-Volume Plate

TAKE3 Take3 Micro-Volume Plate accessory has picture
Take3TRIO Take3 Trio Micro-Volume Plate accessory has picture

Test Plates & Reagents

7120782 BioTek QC Check Solution #1 - Yellow (125 mL) accessory has picture
7260522E Absorbance Test Plate accessory has picture
7260551 340 nm Absorbance Test Plate accessory has picture
