Direct injection cleaning, HEPA filtered injector drying
The 910 LX provides injection washing and drying on one or two levels simultaneously, delivering the wash/rinse solutions into narrow-necked glassware to provide for efficient and effective cleaning. Three Washing positions are available and adjustable for the upper level and provide for greater wash load flexibility. Low profile, rear manifold connections provide wash/rinse solution to the racks, maximizing usable rack surface, which is often reduced by common center manifold designs. 100% of the chamber volume is then available for an unbeaten washing capacity in this size/range of glassware washer dryer. HEPA filtered chamber and direct injection drying reduces cycle time by drying glassware and labware inside and out. This fast turnaround of glassware increases productivity by reducing the waiting time for glassware.

Ease of Use
The 910 LX features microprocessor controls with 4 pre-set programs for chemistry glassware, bacteriology/virology (high temperature), stubborn stains (agar) and volumetric glassware (lower-temp). For other applications the 910 LX offers 38 additional programs that can be modified to fit any application. These custom programs offer the user the ability to easily adjust cycle parameters for program phases, temperatures, phase times and chemical dosing. The system control panel is user friendly with a 7 button keypad and 2 ½ inch LCD interface. Self-diagnostic software provides visual and audible alarms to quickly alert the user in the event of a malfunction, displaying the error and allowing the owner to avoid costly service calls. The 910 LX offers ergonomic loading height to reduce back strain. Additionally with on-board storage capacity, the 910 LX provides added safety.

Unbeaten cleaning and drying results
Lancer’s superior hydraulic design maximizes flow and pressure with a single, direct fluid
path and no intermediate accessories.Additionally, racks are held in place by the door to ensure positive connection without the loss of pressure and flow that is common with other designs. Top and bottom spray arms provide thorough coverage for the interior and exterior of glassware. Water rinses are programmable for hot, cold and hot/cold DI water. These features allow for maximum use of the space within the chamber and ensure cleanliness. This design enhances full interchangeability of the racks between levels, providing further flexibility and reducing the number or racks needed.

Superior construction
The Lancer 910 LX washer is built to the highest standards. With AISI 316 L stainless steel and electronically welded chamber (under Argon protection) and door, the unit is fully enclosed on all 6 sides with AISI 304 L stainless steel to protect components and wiring. Maximum durability of the washer components ensures a long life span. Additionally, the 910 LX is insulated with synthetic rubber based, closed cell foam to guard against heat lost and reduce noise levels creating lower utility costs and a better user experience in the lab.

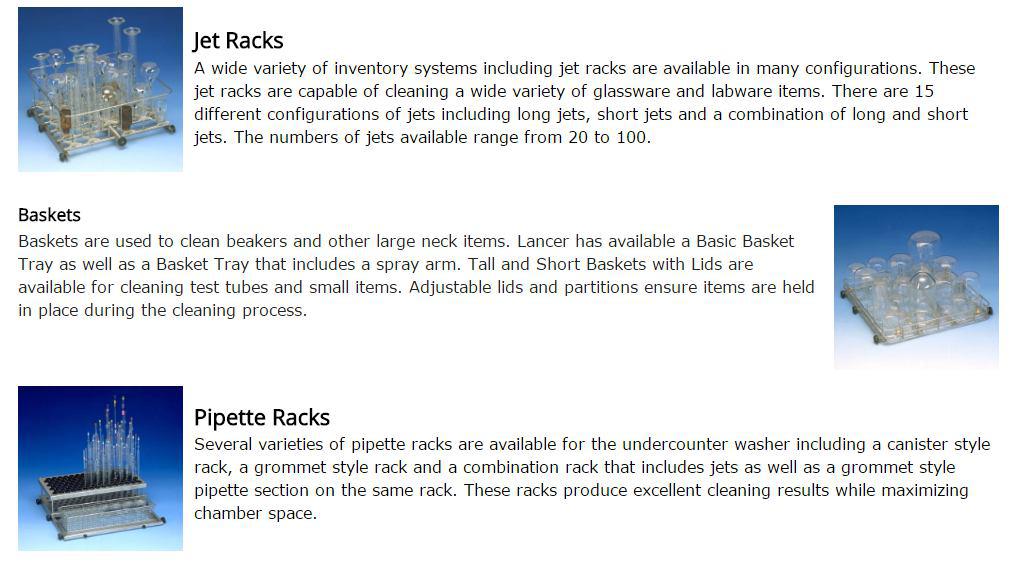

Inventory systems
Having the right rack or accessory to fit your cleaning application is key to ensuring cleanliness and increasing productivity. With this in mind, Lancer provides versatile rack systems to accommodate all types of glassware and laboratory items. These rack systems include a wide range of accessories with various configurations of sizes and quantities of jets or baskets to handle all types of glass and lab ware from bottles to pipettes. Racks can be interchanged between levels to achieve further flexibility.

Optional features:
Most common electrical utilities:
208 V-3 Ph, 60 Hz (US)
208 V-1 Ph, 60 Hz (US)
230 V-3 Ph, 50/60 Hz (FR)
230 V-1 Ph, 50 Hz (FR, UK)
400 V-3 Ph+ N, 50 Hz (FR, UK)
Drain discharge cool down: - Cooling of drain waste from the wash and rinse cycles to < 60°C.
Steam Heating: Stainless steel exchanger provides rapid heating of water in washer sump
Gravity drop drain: For draining of wash water
RS 232 Port: For transferring data information from washer
pH special programming: Automatically adds base or acid solution to lower pH level of effluent before discharge to building drain system
External printer: For documenting evidence of cleaning process with detailed information
Steam condenser: Removes steam vapor and directs all condensate to drain
Chemical dosing pump: For dosing other types of chemicals to fit specific wash requirements. (Up to 1 additional)
IQ OQ: Installation Qualification and Operations Qualification Validation
