Proxima 2800

مشخصات دستگاه

Use the ProXima 2800 for high sensitivity blotting applications (ECL/FL).
It can be used for imaging ethidium bromide stained DNA agarose gels, Coomassie stained gels, SYBR:registered: Green stained gels, 2D SYPRO:registered: Ruby stained gels, film archiving and petri dishes.
Available with touch screen or external PC control
High sensitivity luminescence optimized
Triple Peltier cooled / regulated CCD
16 bit (65536) greyscales
4.1M pixels resolution
High speed optics with F0.95 lens
Fluorescence ready
White light top illumination
True multifluorophore capabilities through the use of patented Epivex optics
bit depth: 16bit
CCD cooling: yes, triple peltier and
thermostatic
Exposure time: 0.001s - 2.5hr
Resolution: 4.1 M pixels
Electronic contol (iris, focus, zoom): yes
Zoom: no
Image positioning system: no
Autofocus: no
Automatic door lock: yes
Flat fielding: yes
Image addition: yes
Software binning: yes
Hardware binning: yes

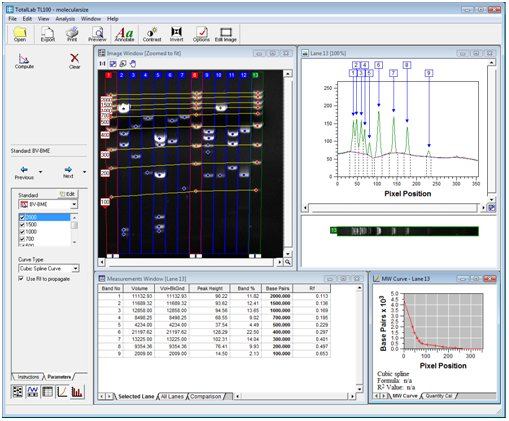

TotalLab Quant - Overview
TotalLab Quant is a suite of core analysis tools for quantitative image analysis applications in the Life Sciences.

TotalLab Quant contains modules for:
1D electrophoresis gel and Western blot analysis
Array / dot blot / slot blot analysis
Colony counting & basic 2D spot measurement
General feature-based image analysis
Download

Download an evaluation copy of TotalLab Quant
(7-day gel import limit)
A wide range of image formats can be analysed, maximising the image capture instruments you already have in your lab.



Analysis of such images is rapid, automated to a high level and reproducible.
The user has the ability to review each stage of the workflow analysis and intervene / edit if required. Combining high levels of automation with final user review allows rapid and accurate quantitative analysis.
The user then has full control of the visualisation tools and data display - outputting only those data fields that are of importance as well as the images of choice.




For 1D gels, highly developed algorithms accurately detect lanes and bands even on distorted gel images. Results can be verified using the range of visualisation tools which aid further examination of lane and band data.
Calibrate the bands using one or more Molecular Size standard lanes and derive accurate quantitation from known band volumes.
For the Arrays and Colony plates, rapid identification and quantitative measurements of all relevant features allow for speedy analysis and accurate data.
...
....
...
