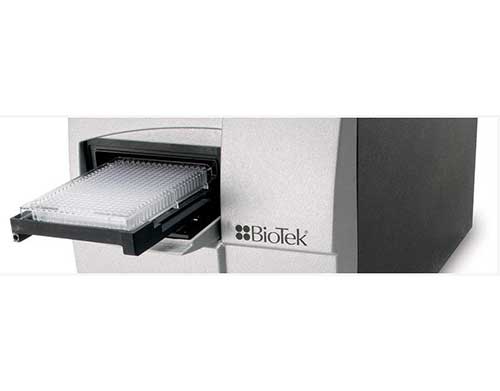

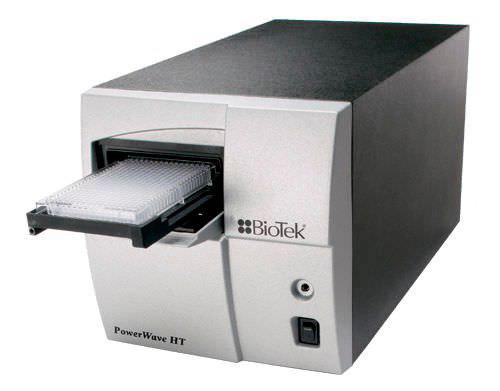

PowerWave HT Microplate Spectrophotometer

مشخصات دستگاه

...
BioTek’s PowerWave HT microplate spectrophotometer is designed for use in a myriad of applications, from direct quantitation of nucleic acids using automated pathlength correction to full-scale high throughput operations that demand speed, accuracy and reliability. With rugged hardware, proven optical performance and a very small footprint, the PowerWave HT is uniquely designed to provide the most application flexibility while saving space both on the benchtop and in automated systems. Gen5 Data Analysis software comes with PowerWave HT, providing unsurpassed power and versatility. Use PowerWave HT for applications requiring low UV measurements, such as direct DNA quantitation and purity testing, RNA quantitation, as well as basic ELISA’s, enzyme kinetics, colorimetric assays, spectral scanning and many other applications.
  • No Interference Filters Required
    Monochromator optical design provides continuous wavelength selection from 200 nm to 999 nm. Measuring wavelengths can be selected in 1 nm increments to meet all assay requirements – it’s like having 800 filters built in! Spectral scanning capability allows quick determination of peak wavelengths in unknown solutions.
  • Microplate Types
    96 and 384-well plates measured. In addition, the PowerWave HT can also read up to 8 of BioTek’s patented Bio-Cell™ quartz vessels for fixed 1 cm measurements.
  • Fast Reading Speed
    Using “on the fly” technology, an entire 96-well plate can be read as few as 5 seconds.
  • Temperature Control and Microplate Shaking
    BioTek’s 4-Zone™ temperature control is a standard feature with the PowerWave HT. BioTek microplate readers use a natural convection system rather than a forced hot air system. This reduces evaporation in the microplate across its broad temperature range of 4° above ambient to 50°C. In the reading chamber, the microplate is completely surrounded by four independently controlled heaters ensuring low variation across the microplate. Users select from four shaking intensities and can define shake time for controlled agitation.
  • Robotics Compatible
    The PowerWave HT's small footprint makes it ideal for robotic systems. The carrier is designed for easy robot gripper access. PowerWave HT is compatible with BioStack 3 and BioStack.
  • Gen5™ Data Analysis Software included with all models.
RPRWI
PowerWave HT: 200-999 nm, 96- and 384-well plate reading with programmable shaking and temperature control from ambient +4°C to 50°C.
General
Detection modes Absorbance
Read methods Endpoint, kinetic, spectral scanning
Microplate types 96- and 384-well plates
Temperature control 4-Zone™ incubation to 50 °C
+ 0.2 °C at 37 °C
Shaking Linear
Software Gen5™ Data Analysis Software
Gen5 Secure for 21 CFR Part 11 compliance (option)
Automation BioStack and 3rd party automation compatible
Absorbance
Light source Xenon flash
Detector photodiode
Wavelength selection monochromator
Wavelength range 200 to 999 nm, in 1 nm increments
Monochromator bandwidth 5 nm
Dynamic range 0 - 4.0 OD
Resolution 0.001 OD
Pathlength correction yes
Monochromator wavelength accuracy +2 nm
Monochromator wavelength repeatability +0.2 nm
OD accuracy 1% + 0.01 OD
OD linearity +1%
OD repeatability 0.5% + 0.005 OD
Stray light 0.03% at 230 nm
Reading speed (kinetic) 96 wells: 5 seconds
384 wells: 11 seconds
Physical Characteristics
Power 100-240 Volts AC. 50/60 Hz.
Dimensions 8.5"W x 16"D x 8.5"H
(21.6 x 40.6 x 21.6 cm)
Weight 24 lbs (11 kg)
Regulatory
Regulatory CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Standard (Included)

Gen5 Microplate Reader and Imager Software

Gen5 Microplate Reader and Imager Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.


Optional

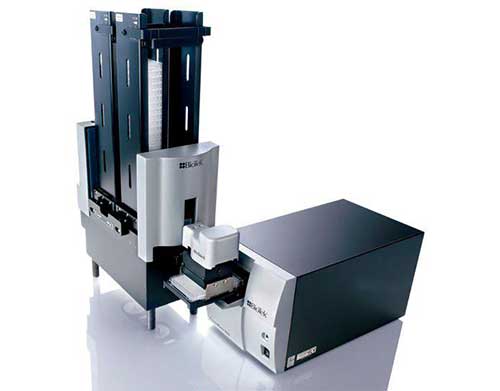

BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Standard (Included)

Cables

75053 Serial Cable, Null Modem (9-pin female to 25-pin female) accessory has picture

Operators Manual

MANUAL Operator's manuals can be obtained via the Customer Resource Center

Optional

Adapters and Labware Holders

7302030 Cuvette Adapter accessory has picture

BioStack Integration Kits

7310048 BioStack Integration Kit for PowerWave HT and PowerWave XS accessory has picture

Cables

75104 USB to Serial Adapter accessory has picture

Miscellaneous

7210515 3-Instrument Rack – for third party robotic system integration accessory has picture
7270512 BioCell Adapter Plate Assembly accessory has picture
7272051 BioCell 1 cm Quartz Vessel accessory has picture

Product Qualification Packages

7280520 PowerWave Qualification Package
7300514 PowerWave XS2 Qualification Package

Software Options

GEN5SECURE Gen5 Secure accessory has picture
GEN5IVD Gen5 IVD accessory has picture
Gen5 Gen5 Data Analysis Software accessory has picture
GENRC Gen5 Reader Control (RC) accessory has picture

Test Plates & Reagents

7120779 BioTek QC Check Solution #1 - Yellow (25 mL) accessory has picture
7120782 BioTek QC Check Solution #1 - Yellow (125 mL) accessory has picture
7260522E Absorbance Test Plate accessory has picture
7260551 340 nm Absorbance Test Plate accessory has picture
