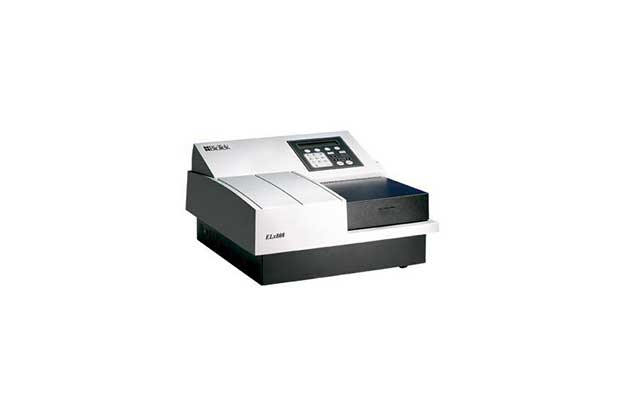

ELx808 Absorbance Reader

مشخصات دستگاه

دستگاه میکروپلیت ریدر Elx808 به منظور اندازه گیری OD به کار می رود. این دستگاه به صورت پیش فرض دارای چهار طول موج نصب شده می باشد و می توان تا 6 فیلتر با طول موج های مختلف را روی آن نصب کرد. هم چنین این دستگاه قابلیت اتصال به پرینتر سوزنی را دارد. هم چنین میتوان دستگاه را به کامپیوتر نیز متصل کرد و با استفاده از نرم افزار هایی مانند Gen5,Xchek و غیره دستگاه را کنترل و کارهای مربوط به آنالیز را بنا به ویژگی های هر نرم افزار انجام داد. هم چنین این دستگاه دارای مدل هایی است که دارای انکوباسیون و یا UV می باشند.

The ELx808™ Absorbance Microplate Reader provides the flexibility to manipulate and analyze your data. This multi-channel reader continues BioTek's tradition of offering the tightest specifications of any microplate reader - precise, accurate and repeatable. The ELx808 on-board diagnostic self-test and calibration test plate make it easy to confirm and document reader performance. All calculations are performed automatically. Combined with our history of quality hardware engineering, the ELx808 sets the standard for microplate readers.

As a stand-alone microplate reader, the ELx808 is designed for applications within the following areas:

Agricultural
Biotechnology research
Cell biology
Cell counting
Cell proliferation
Clinical
ELISA
Environmental
Food processing
Kinetic ELISA
LAL
Neuroscience

Extensive on-board data analysis, including
- Data transformation formulas
- Assay and control validation
- Curve-fitting options: linear, 4-P, 2-P (logit/log), cubic, quadratic, cubic spline, point-to-point
- Multiple assays per plate
Fast Kinetics
- Measurements in intervals as short as 6 seconds
- Kinetic rate, R² or onset time reported without needing a PC
Linear well scanning for agglutination assays
4-Zone™ Temperature Control
- Incubation to 50ºC
- Improved reproducibility in enzyme kinetic reactions
- Enhanced uniformity through independently monitored heaters
- Unique heated track/carrier design for minimal evaporation and edge effect
Superior optical design
- Incorporates a staggered optical design to eliminate channel-to-channel crosstalk
- Reference channel rolls optical signal for uniform channel-to-channel signal

Part #	ELX808	ELX808IU
96-well	•	•
380-900 nm	•
340-900 nm		•
Incubation		•
Shaking	•	•
Software	Option	Option

General
Detection modes	Absorbance
Read methods	End point, kinetic, linear scanning
Microplate types	96-well plates
Temperature control	4-Zone incubation to 50 °C +0.2 °C at 37 °C
Shaking	Linear
Software	Gen5 Reader Control Software Gen5 Secure for 21 CFR Part 11 compliance (option)
Absorbance
Light source	Tungsten halogen
Detector	photodiode
Wavelength selection	filters
Wavelength range	380 to 900 nm 340 to 900 nm (ELx808IU)
Dynamic range	0 to 4.0 OD
Resolution	0.001 OD
Pathlength correction	no
Filter wheel capacity	6 positions
Filters supplied	4 filters (5 with UV option)
OD accuracy	< 1% at 2.5 OD < 2% at 3.5 OD
OD linearity	<1% at 2.5 OD
OD repeatability	< 0.5% at 2.5 OD < 1.5% at 3.5 OD
Reading speed (kinetic)	96 wells: 8 seconds
Physical Characteristics
Power	100 - 240 Volts AC. 50/60 Hz
Dimensions	15.5"W x 16"D x 8.75"H
Weight	30 lbs (13.6 kg)
Regulatory
Regulatory	For In Vitro Diagnostic use. CE and TUV marked, RoHS Compliant.

Standard (Included)

Gen5 Microplate Reader and Imager Software

BioTek’s Gen5™ software offers a logical interface designed to easily flow from reading parameters, to plate layout, to powerful data reduction, and finally to flexible data output options. The results of this intuitive design, including the exclusive StepWise™ protocol and data reduction tools and the power of Gen5's data reduction, will be evident in increased laboratory efficiency.
Note: Some instruments come with a specific edition of Gen5, please check the microplate reader specifications.

Standard (Included)
Cables
71072	Parallel Printer Cable (25-pin male to 36-pin male)
75053	Serial Cable, Null Modem (9-pin female to 25-pin female)
Filters
3100405	405nm Filter for ELx808
3100450	450nm Filter for ELx808
3100490	490nm Filter for ELx808
3100630	630nm Filter for ELx808
Operators Manual
MANUAL	Operator's manuals can be obtained via the Customer Resource Center
Test Plates & Reagents
7260551	340 nm Absorbance Test Plate

Optional
Cables
75104	USB to Serial Adapter
75135	Parallel to USB Adapter
Filter Accessories
3110508S	Empty Filter Wheel for ELx808
3122037	Plug (Dummy filter) for ELx808
Filters
3100340	340nm Filter for ELx808
3100415	415nm Filter for ELx808
3100515	515nm Filter for ELx808
3100540	540nm Filter for ELx808
3100550	550nm Filter for ELx808
3100562	562nm Filter for ELx808
3100570	570nm Filter for ELx808
3100590	590nm Filter for ELx808
3100595	595nm Filter for ELx808
3100600	600nm Filter for ELx808
3100620	620nm Filter for ELx808
3404650	650nm Filter for ELx808
3404690	690nm Filter for ELx808
3404750	750nm Filter for ELx808
Product Qualification Packages
7340543	ELx808 Qualification Package
Software Options
GEN5SECURE	Gen5 Secure
GEN5IVD	Gen5 IVD
Gen5	Gen5 Data Analysis Software
GENRC	Gen5 Reader Control (RC)
Test Plates & Reagents
7120779	BioTek QC Check Solution #1 - Yellow (25 mL)
7120782	BioTek QC Check Solution #1 - Yellow (125 mL)
7260522E	Absorbance Test Plate
