MultiFlo Dispenser

مشخصات دستگاه

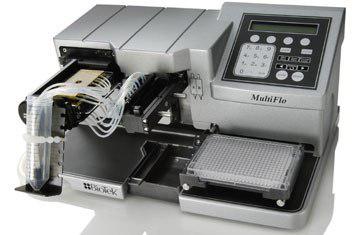

BioTek's MultiFlo™ Microplate Dispenser offers a single peristaltic pump for dispensing into 6- to 1536-well microplates. The MultiFlo dispenses a broad volume range from 500 nL to 3 mL accurately and precisely in a compact design. BioTek's proprietary angled dispensing ensures compatibility with all dispense protocols including reagent addition to loosely adherent cell monolayers. For assays requiring minimum reagent usage, the MultiFlo's prime volume is under 1 mL. A built-in priming trough is designed to allow both recovery of reagents or to send primed reagent directly to waste.

  • Wide dispense volume range of 500 nL to 3 mL
  • Compatible with 6- to 1536-well microplates
  • Compact footprint, ideal for integration into automated systems
  • BioStack compatible for walkaway automation
  • Choice of 1, 5 or 10 µL cassettes for most efficient dispensing

MFP
MultiFlo with one peristaltic pump

General
Microplate Types 6-, 12-, 24-, 48-, 96-, 384- and 1536-well microplates
Low profile, standard and deep well formats
Other labware supported Microtubes
Onboard Software Create, edit or run multiple protocols
Software (pc control) LHC2 Software
LHC2 Secure for 21 CFR Part 11 compliance (option)
SiLA Compliant driver (option)
Shaking Programmable up to 60 minutes
Slow, medium, fast or variable
Soaking Programmable up to 60 minutes
Automation BioStack and 3rd party automation compatible
Dispensing - Peristaltic pump (Multi-Channel)
Fluid Delivery 1 peristaltic pump
Dispense Speed 96 wells, 5 µL cass, 10 µL/ well: 3 seconds
384 wells, 5 µL cass, 5 µL/ well: 6.5 seconds
384 wells, 10 µL cass, 10 µL/ well: 8 seconds
1536 wells, 1 µL cass, 1 µL/ well: 21 seconds
Volume Range 500 nL - 3,000 µL/well, selectable in 1 µL increments
Flow Rates User programmable rates from high to low
Dispense Performance 1 µL cassette: recommended range: 1 - 50 µL
Accuracy: +5% at 1 µL
Precision: <5% CV at 1 µL
< 10% CV at 500 nL
Minimum Prime Volume: 1.20 mL

5 µL cassette recommended range: 5 - 2,500 µL
Accuracy: +2% at 5 µL
Precision: <2.5% CV at 5 µL
Minimum Prime Volume: 4.23 mL

10 µL cassette recommended range: 10 - 3,000 µL
Dispense Accuracy: +2% at 10 µL
Dispense Precision: <2% CV at 10 µL
Minimum Prime Volume: 7.36 mL
Recommended cassette replacement interval 1 µL Cassette: 1,000 384-well microplates at 5 µL well
5 µL Cassette: 1,000 96-well microplates at 50 µL well
10 µL Cassette: 1,000 96-well microplates at 100 µL well
Sterilization Autoclave, chemical
Physical Characteristics
Power 100 - 240 Volts AC. 50/60 Hz
Dimensions 16.1"W x 10.6"D x 7.6"H (40.9 x 26.9 x 19.3 cm)
Weight 14.3 lbs (6.5 kg)
Regulatory
Regulatory CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Optional

BioSpa 8 Automated Incubator

BioSpa 8 Automated Incubator

BioSpa 8 is an automated incubator linking BioTek readers or imagers together with washers and dispensers for full workflow automation of up to 8 microplates. Temperature, CO2/O2 and humidity levels are controlled and monitored through the BioSpa software to maintain an ideal environment for cell cultures during all experimental stages.


BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Liquid Handling Control™ Software

Liquid Handling Control™ Software

Software is a powerful yet flexible interface for use with BioTek’s liquid handlers including the 405™ Microplate Washer, the ELx405™ Select Deep Well Washer, the EL406™ Washer Dispenser and the MultiFlo™ Dispenser. New LHC Secure offers compliance to the FDA directive 21 CFR Part 11 or whenever additional security is required.


Optional

Adapters and Labware Holders

7212042 Minitube Carrier - for labware up to 50 mm in height, including 1.2 mL minitubes accessory has picture

BioStack Integration Kits

7310044 BioStack Integration Kit for MultiFlo FX & MultiFlo

Cassettes

7170007 Large Volume Replacement Tubing Set (10 µL) - molded plastic tips accessory has picture
7170008 Medium Volume Replacement Tubing Set (5 µL) - molded plastic tips accessory has picture
7170009 Low Volume Replacement Tubing Set (1 µL) - molded plastic tips accessory has picture
7170010 Large Volume (10 µL) Cassette - molded plastic tips accessory has picture
7170011 Medium Volume (5 µL) Cassette - molded plastic tips accessory has picture
7170012 500 nL – 50 µL, 1 µL increments, cassette, plastic tips accessory has picture
7170013 Large Volume (10 µL) Cassette - stainless steel tips accessory has picture
7170014 Medium Volume (5 µL) Cassette - stainless steel tips accessory has picture
7170015 500 nL – 50 µL, 1 µL increments, cassette, sapphire jeweled stainless steel tips accessory has picture
7170016 500 nL - 50 µL, 1 µL increments, 1536-well cassette, steel tips accessory has picture
7170018 500 nL - 50 µL, 1 µL increments, 1536-well cassette, plastic tips accessory has picture
7170020 Large volume (10 µL) Cassette Tubing Extension Kit accessory has picture
7170021 Medium volume (5 µL) Cassette Tubing Extension Kit accessory has picture
7170022 Low volume (1 µL) Cassette Tubing Extension Kit accessory has picture
7170023 Large Volume (10 µL) Cassette - large bore, molded plastic tips
7170024 Medium Volume (5 µL) Cassette - large bore, molded plastic tips
