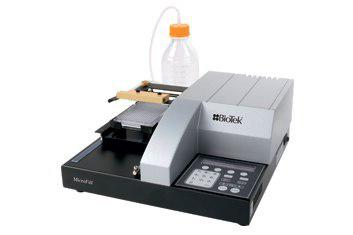

MicroFill Dispenser

  • 405 Touch Washer

مشخصات دستگاه

MicroFill™ offers an economical, compact, and reliable alternative to existing microplate dispensers. Accurate and precise dispensing are guaranteed without the time-consuming recalibration, cassette replacement, and maintenance commonly associated with other dispensers available today. Autoclavability is standard available for those applications requiring a sterile fluid path.

Using BioTek's vast expertise in liquid handling, MicroFill™ incorporates a microprocessor controlled syringe pump for optimal performance. 24-, 96- and 384-well standard microplates and deep well blocks are accommodated with flexible volume ranges from 5 µL to 6,000 µL per well. MicroFill's compact footprint makes it ideally suited to fit inside laminar flow cabinets. The user-controlled dispense flow rates allow low- to high-velocity dispensing for any application.

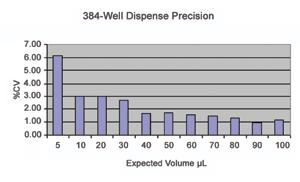

Superior Performance in 24-, 96- and 384-well Plates

MicroFill repeatedly delivers reagents with a range in sample viscosities. Typical performance is 1.5% CV at 80 μL.



US Federal Government customers: This product is available on GSA contract. Contact BioTek Customer Care with questions or submit a Quote Request Form to receive pricing and information on specific models (please note GSA Contract in the Comments field).

  • Robot compatible carrier accommodates 24-, 96- and 384-well standard and deep well microplates
  • Microprocessor-controlled syringe pump guarantees optimal precision and accuracy
  • No recalibration required
  • Low-maintenance design with BioTek's long history of liquid handling instruments
  • User-controlled dispense flow rates for low- to high-velocity dispensing
  • Up to 75 programs stored in multiple languages at the touch of a button
  • Built-in maintenance routines

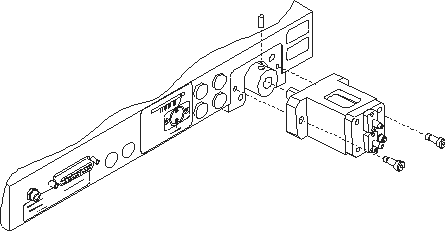

MicroFill’s autoclavable syringe pump is changed in seconds for guaranteed sterility and no reagent carryover.

 Part #

AF1000A

 24-, 96- and 384-well
 Autoclavable
 Organic solvents

Language versions available: English, French, German, Italian, and Spanish.



General
Microplate Types 24-, 96- and 384-well
Low profile, standard and deep well formats
Other labware supported PCR tubes, microtubes
Onboard Software Create, edit or run multiple protocols
Software (pc control) Interface software (optional) for robotic system integration
Shaking Programmable up to 60 minutes
Slow, medium, fast or variable
Soaking Programmable up to 60 minutes
Automation BioStack and 3rd party automation compatible
Dispensing - Syringe pump
Manifold Types 24-well dispensing:
One 8-tube (1x8) manifold - 316 SS tubes
96-well dispensing:
One 8-tube (1x8) manifold - 316 SS tubes
96-/384-well dispensing:
One 16-tube (1x16) manifold - 316 SS tubes
Dispense Speed 96 wells, 10 µL/well, 1 x 16: 4 sec
384-wells, 5 µL/well, 1 x 16: 7 sec
Volume Range 5 - 6000 µL/well (manifold dependent)
Minimum Prime Volume: 10 mL
Flow Rates User programmable rates from high to low
Dispense Accuracy +1 µL at 5 µL
+1 µL at 20 µL
+1% at 100 µL
Dispense Precision <5% CV at 5 µL
<2.5% CV at 20 µL
<1% CV at 100 µL
Supply Bottle 1 L
Sterilization Autoclave, chemical
Physical Characteristics
Power 100 - 240 Volts AC. 50/60 Hz
Dimensions 18" D x 15" W x 7"H (46 cm x 38 cm x 18 cm)
Weight 20 lbs (8.9 kg)
Regulatory
Regulatory CE and TUV marked. ROHS compliant. In Vitro Diagnostic use models are available.

Specifications are subject to change. Performance values represent the average observed factory test values.

Optional

BioStack Microplate Stacker

BioStack Microplate Stacker

BioStack™ is a compact and versatile microplate stacker compatible with BioTek’s washers, dispensers, detectors and imaging systems. BioStack offers rapid plate exchange speeds to increase throughput and enhance productivity, accommodating assay workflows both with and without plate lids.


Standard (Included)

Bottles & Tubing

7140510 Spare Tubing Set for AF1000A accessory has picture
7140511 Autoclavable Reagent Bottle (1L) with Cap and Connector accessory has picture

Manifolds

7140508S Spare 16-Channel Manifold, for 96- and 384-Well Microplates

Miscellaneous

2872304 Spare Stylus
4070517 Aerosol Cover accessory has picture
7140006 Priming Trough Draining Set accessory has picture

Operators Manual

MANUAL Operator's manuals can be obtained via the Customer Resource Center

Optional

Bottles & Tubing

7140514 Supply Tubing for DMSO and Acetonitrile accessory has picture
7140522 Tubing Set for AF1000A - Teflon lined

Labware Holders

6002076 Holder for PCR Microplates accessory has picture

Manifolds

7140515S 8-Channel Manifold, for 96-well Half Area and PCR Microplates accessory has picture
7140518S 8-Channel Manifold, for 24-well Microplates

Miscellaneous

7140202 MicroFill Dispenser Interface Software
7180046 Spare Syringe Head/Plunger Assembly
7210515 3-Instrument Rack – for third party robotic system integration accessory has picture

Product Qualification Packages

7140517 MicroFill Qualification Package

Test Plates & Reagents

7773001 BioTek Solution #2 10X Concentrate Blue Test Dye (125 mL)
7773002 BioTek Solution #1 100X Concentrate Wetting Agent (125 mL)
